Production process:
The production methods of High Heat Alumina Checker Brick and clay bricks are basically the same.
Only some process parameters are different. There are also
processes such as crushing → mixing → molding → drying → firing →
inspection → packaging.
The compressive stress is better at low temperature, but slightly
reduced at high temperature, so the stack in the kiln is less than
1 meter. The production process of high-alumina refractory bricks
and multi-clinker clay bricks is similar.
The difference is that the proportion of clinker in the ingredients
is higher, which can be as high as 90%-9%. The clinker needs to be
sorted and sieved before crushing. The firing temperature is
higher. For example, high-alumina refractory bricks such as Ⅰ and Ⅱ
are generally 1500～1600℃ when fired in tunnel kiln.
Production practice proves that high-alumina clinker is strictly
selected and classified before crushing, and is stored in tiers.
The co-fine grinding method of bauxite clinker and combined clay
can improve the quality of high-alumina refractory brick

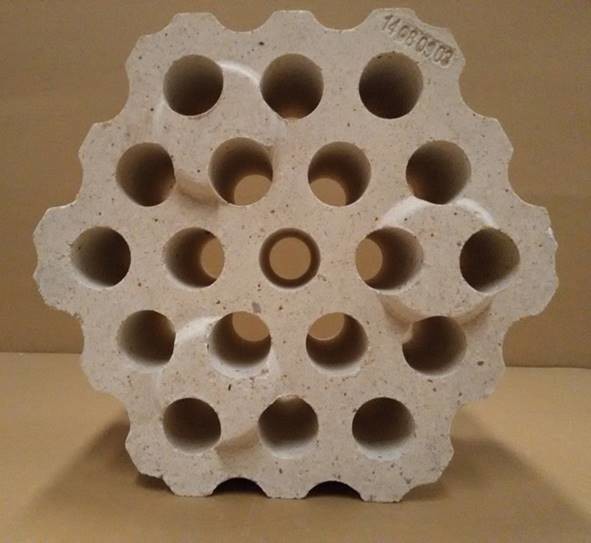

Aluminum oxide (Al2O3) content is higher than 48% High Heat Alumina Checker Brick
A neutral refractory with an alumina content of more than 48%.Made
of bauxite or other raw materials of high alumina content after
molding and calcining.High thermal stability, refractoriness in
1770℃ above.Good slag resistance, used for lining steelmaking
electric furnace, glass furnace, cement converter, etc.
High charge soft, High Heat Alumina Checker Brick is a high grade refractory material made of super grade bauxite,
fused corundum and fused mullite.
Feature
1. Better Cold Crushing Strength
2. High Refractoriness Under Load
3. Better Thermal Shock Resistance
4. Low Reheating Linear Rate
Applications:
1. Furnaces of metallurgy industry, heat treatment furnace
2. Furnaces of chemical industry and construction industry.
3. Furnace of incineration of garbage, recirculating fluidized bed
furnace
Standard sizing: 230 x 114 x 65 mm others up to the client
Zhengzhou Annec CO., Ltd. was founded in 2003, and has been a
NASDAQ listed corporation since 2011 with ticker identification
ANNC. Annec had become the industrial leader within China in the
areas of refractory production, Engineering for hot blast stove of
blast furnace, and capability for EPC project. Annec has its own
Provincial Enterprise Technology Center and Top Combustion Hot
Blast Stove Research Centre, Annec (Beijing) Engineering &
Technology Co., Ltd and four Manufacturers for Refractories. The
annual output of different type of refractories can reach 150
thousand tons, and undertaken capability of more than 10 turnkey
projects for hot blast stove.
Annec is a national hi-tech company, and is accredited with
ISO9001:2008 quality control system standards, ISO12001:2004
environmental control system standards, and GB/T28001-2011 HAZOPS.
Annec has set up a thorough and effective management system with
practical considerations for her employees and community, and is
persistent in promoting employee self-value and product quality.
With these efforts, Annec was awarded the prestigious 2012
Zhengzhou Mayor Quality Prize.
